Magnetic Bases

Magnetic Bases
Magnetic Bases
Product Code : AK-15
Brand Name : HTC
Product Description

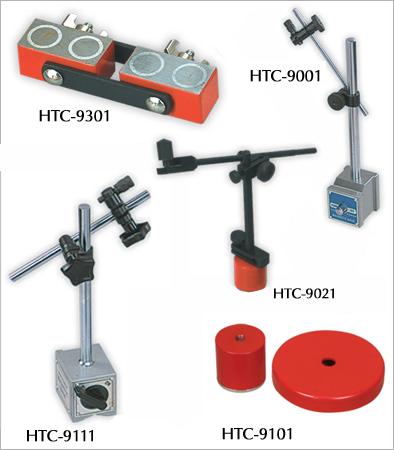

MAGNETIC BASES, MINI MAGNETIC STAND, POT MAGNETS

HTC-9101, HTC-9301, HTC-9001, HTC-9021, HTC-9111


MAGNETIC BASES
These units are primarily for holding dial gauge indicators. Equipped with on/off control. They can be readily located with one hand to provide a completely rigid support which will remain firmly positioned until required to be released. The base and two sides are energised for attachment to flat surfaces and vee slot for facilitating gripping on curved surfaces.

#
Length MM
Base Size Width MM
Height MM
HTC - 9001
PUSH ON/OFF
48
40
50
HTC - 9111
ROTARY ON/OFF
65
48
55

MINI MAGNETIC STAND 9021 (MINOR MAG)
  • Compact and small universal permanent magnetic stand.
  • High magnetic power affords maximum rigidly.
  • Includes a disc at the bottom for neutralizing magnet when not in use.
#
Type
Height of Base
Dia of Base
Overall Length
HTC - 9021 A
Without Fine Adj.
1"
1"
3"
HTC - 9021 B
With fine Adj.
1"
1"
5"
HTC - 9021 C
Regular
1"
1"
4-1/2"

POT MAGNETS 9101
  • Pot of mild Steel.
  • Spacer of Aluminium.
  • Supplied with plated Keepers.
  • Has unlimited use, magnetic, fastner, displays, holding maps etc.
#
Height
Dia
HTC - 9101 A
5/8" (16 MM)
11/16" (17.5 MM)
HTC - 9101 B
3/4" (19 MM)
1" (25 MM)
HTC - 9101 C
1" (25 MM)
1-1/16" (27 MM)
HTC - 9101 D
1-3/16" (30 MM)
1-3/8" (35 MM)

SHALLOW POT MAGNETS 9201
  • Pot : Mild Steel.
  • Keeper with each magnet.
  • North polarity in center.
#
Dia

Pul In Lbs.
HTC- 9201 A
1-9 / 16"
(40 MM)
10
HTC- 9201 B
2"
(50 MM)
20
HTC- 9201 C
2-3/4"
(65MM)
35
HTC- 9201 D
3-1/8"
(80 MM)
50

MAGNETIC ADJUSTABLE LINK 9301
  • It is a twin unit possessing a multiple angle capability.
  • Can be quickly locked at any angle by turn of a wing nut.
  • Provides simplest and rapid means of clamping two light weight ferrous parts.
  • Magnetic pull 15 Kg. (35 lbs.).
#
Block Size
Overall Length
Overall Width
HTC - 9301
2"X1"X1"
(50X25X25 MM)
4-5/8"
(115.5 MM)
2"
(50 MM)
