Home » Products » MAG. V-BLOCK, QUICK CLAMP, MAG. CHUCKS- RD./ RECT.

MAG. V-BLOCK, QUICK CLAMP, MAG. CHUCKS- RD./ RECT.

MAG. V-BLOCK, QUICK CLAMP, MAG. CHUCKS- RD./ RECT.
MAG. V-BLOCK, QUICK CLAMP, MAG. CHUCKS- RD./ RECT.
Product Code : AK-16
Brand Name : HTC TOOLS
Product Description

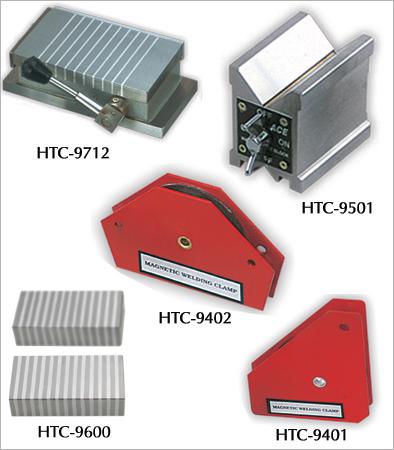

MAG. V-BLOCK, QUICK CLAMP, MAG. CHUCKS- RD./ RECT.

HTC-9401, HTC-9712, HTC-9501, HTC-9600, HTC-9402

MAGNETIC QUICK CLAMP (HOLDING TOOL) HTC - 9401 & 9402

  • A small lightweight holder with a powerful magnetic force for temporary attachment in welding and assembly operations.
  • Model 9401 with three angles i.e, 30o, 90o and 135o and model 9402 with 5 angles i.e, 30o , 45o, 60o, 75o & 90o.
  • Compactness allows use in tight spaces.
HTC - 9401
4-3/8" (110 MM)X 3-3/4" (95 MM)
25 KGS. PULL

HTC - 9402
4" (101.25 MM) X 2-5/8" (65 MM)
27 KGS. PULL

MAGNETIC VEE BLOCK HTC - 9501
  • Holds cylindrical or irregular shapes work piece for grinding, measuring and machining.
  • Powerful holding force.
  • Fine precision ground finish for use as an inspection device.
  • There are two vees, the smaller for work pieces upto 20 mm diameter and the larger for work pieces upto 65 mm diameter.
  • Fixed on/off switch.
#
Height
Width
Length
HTC - 9501 A
3 - 3/4" (95.25 MM)
2-3/4" (69.85 MM)
4" (101.60 MM)
HTC - 9501 B
3 - 3/4" (95.25 MM)
2-3/4" (69.85 MM)
3" (75 MM)

PERMANENT MAGNETIC CHUCKS - RECTANGULAR TYPE STANDARD PLOES & CLOSE POLES.
  • High powered chucks.
  • Solid top and bottom plates assure retained accuracy.
  • Full loading power over entire plate.
  • Has a positive hand release.
  • Pole divisions are arranged for holding small, thin and large pieces.
Standared Pole
Close Pole
Size
Size
Mm
HTC - 9601 A
HTC - 9602A
4"X7"
100X175
HTC - 9601 B
HTC - 9602 B
5"X10"
125X250
HTC - 9601 C
HTC - 9602 C
6"X12"
150X300
HTC - 9601 D
HTC - 9602 D
6"X14"
150X350
HTC - 9601 E
HTC - 9602 E
6"X18"
150X450
HTC - 9601 F
HTC - 9602 F
8"X12"
200X300
HTC - 9601 G
HTC - 9602 G
8"X18"
200X450
HTC - 9601 H
HTC - 9602 H
8"X24" 250X600
HTC - 9601 J
HTC - 9602 J
10"X16"
250X400
HTC - 9601 K
HTC - 9602 K
12"X24"
300X600

PERMANENT MAGNETIC CHUCKS ROUND
Standard Pole
Close Pole
Dia Inch
Dia MM
HTC - 9603 A
HTC - 9604 A
5"
125
HTC - 9603 B
HTC - 9604 B
6"
150
HTC - 9603 C
HTC - 9604 C
7"
175
HTC - 9603 D
HTC - 9604 D
8"
200
HTC - 9603 E
HTC - 9604 E
9"
225
HTC - 9603 F
HTC - 9604 F
10"
250
HTC - 9603 G
HTC - 9604 G
12"
300

MAGNETIC CHUCK PARALLEL & UNIVERSAL V - BLOCKS.
  • Most Popular Accessory.
  • Selected Steel used for highest Magnetic Transfer and is cast integrally with alluminium.
  • Parallels are ground all over.
  • V - Blocks are universal.
#
Description
Size
HTC - 9712
One Pair Magnetic Chuck Parallel
1"X2"X4"
HTC - 9713
One Pair Magnetic Chuck V-Block
1-7/8"X2-3/8"X2
Large Capacity 2" Round Small V Capacity 1/2"
Round 1-7/8"X2-3/8"X4-3/8"
HTC - 9714
One Long V - Block
Large V Capacity 2" Small V Capacity 1/2" Round


AKASH INDUSTRIES
4-A, Bhamashah Marg, Delhi - 110009, India
Mr. B. K. Vig (Proprietor)
