Home » Products » Feeler Gauge

Feeler Gauge

Feeler Gauge
Feeler Gauge
Product Code : AK-18
Brand Name : HTC
Product Description

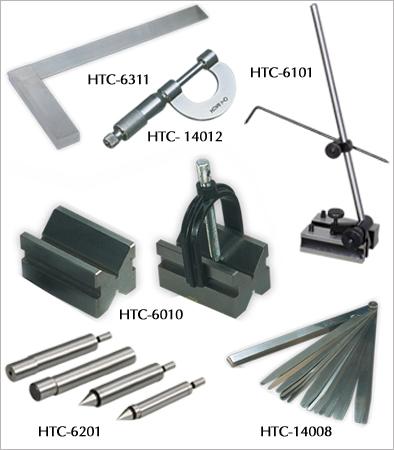

HTC-6010, HTC-6101, HTC-6201, HTC-6311, HTC-14008,

MACHINIST STEEL SQUARE H TC - 6301
  • Made of finest steel.
  • Blades are hardened.
  • Accuracy workshop – grade.
  • Square accurate, both inside and outside.
  • Groove on inside corner of bam for clearance of dia.
  • Beams and blades are ground for straightness and parallism.
Standard Grade
B.S.W
Length of Blade Length of Blade
mm
HTC – 6301 A
HTC – 6302 A
2”
50
HTC – 6301 B
HTC – 6302 B
3”
75
HTC – 6301 C
HTC – 6302 C
4”
100
HTC – 6301 D
HTC – 6302 D
6”
150
HTC – 6301 E
HTC – 6302 E
8”
200
HTC – 6301 F
HTC – 6302 F
9”
225
HTC – 6301 G
HTC – 6302 G
10”
250
HTC – 6301 H
HTC – 6302 H
12”
300
HTC – 6301 J
HTC – 6302 J
18”
450
HTC – 6301 K
HTC – 6302 K
24”
600

ENGINEERS SQUARE GRADE ‘A’ 6311
  • Suitable for use where accurate right angles are essential .
  • For checking external and internal right angles.
  • Beams is riveted to the fully grounded and polished carbon steel blade.
  • Groove on inside corner of beam for clearance of dirt of burns.
  • All sizes have hardened stocks and blades.
#
Length of Blade

mm
#
Length of Blade Length of Blade
mm
HTC – 6311 A
2”
50
HTC – 6311 B
3”
75
HTC – 6311 C
4”
100
HTC – 6311 D
6”
150
HTC – 6311 E
8”
200
HTC – 6311 F
9”
225
HTC – 6311 G
10”
250
HTC – 6311 H
12”
300
HTC – 6311 J
18”
450
HTC – 6311 K
24”
600

ENGINEERS SQUARES & STRAIGHT EDGES
  • GRADE A (INSPECTION SQUARE)
  • These squares are used to check workshop squares and have hardened stocks and blades.
#
DESCRIPTION
IN MM
IN INCHES
HTC – 6322 A
GRADE A (INSPECTION) SQUARES
75
3
HTC – 6322 B
GRADE A (INSPECTION) SQUARES
100
4
HTC – 6322 C
GRADE A (INSPECTION) SQUARES
150
6
HTC – 6322 D
GRADE A (INSPECTION) SQUARES
225
9
HTC – 6322 F
GRADE A (INSPECTION) SQUARES
300
12
HTC – 6322 G
GRADE A (INSPECTION) SQUARES
450
18
HTC – 6322 H
GRADE A (INSPECTION) SQUARES
600
24

TOOL MAKERS SURFACE GAUGE 6101
  • Quick setting for any angle and height.
  • Base and scriber hardened.
  • Bottom grooved for cylindrical work.
  • Has fine adjustment for accurate positioning.
  • Base has 2 retractable gauge pins to set against edge of a surface plate.
#
Size
mm
HTC – 6101 A
4”/7”
100/175
HTC – 6101 B
9”
225
HTC – 6101 C
9”/12”
225/300
HTC – 6101 D
12”/18”
300/450

EDGE FINDERS & CENTER FINDERS 6201
  • All parts are hardened and center less ground.
  • Time saving positioning tool for jig borers, milling and others.
  • Accurately locates the starting point for all types.
#
End
Size
Shank
HTC – 6201 A
Single
.500”
1/2"
HTC – 6201 B
Double
.500” TO 0.200”
1/2"
HTC – 6201 C
Single .200”
3/8”
HTC – 6201 D
Double .200” AND POINT
1/2"
HTC – 6201 E
Double .200” AND POINT
3/8”
HTC – 6201 F
Single .500” TO 0.200”
1/2"
HTC – 6201 G
Single POINT
3/8”
HTC – 6201 H
Single POINT
1/2"

V-BLOCKS AND CLAMPS SET 6010
  • Made of tool steel, hardened and ground.
  • All sides ground square and parallel to each other.
  • Matched accuracy of 0.0002”.
  • Supplied in pairs with two clamps.
  • Matched and numbered in pairs.
#
V – Capacity
Size of Blocks
HTC – 6010 A
1”
1-1/4”X1-1/4”X1-5/8”
HTC – 6010 B
1”
1-3/8”X1-5/8”X1-3/4”
HTC – 6010 C
1-1/2”
1-1/2”X1-1/2”X2”
HTC – 6010 D
1-1/2”
1-5/8”X1-3/4”X2-3/4”

  • CAST IRON V-BLOCKS ARE ALSO AVAILABLE.
FEELER GAUGE H TC - 14008
Straight 26 leaf set
002” three .025 by .001” step. Plus. 0.0015 & .0025”
  • ALSO AVAILABLE IN METRIC & IMPERIAL SIZES
FEELER STRIP H TC - 14019
  • Used for gauging gaps and as shim stock in maintenance workshop, Tool rooms etc.
  • Available in 300 mm (12”) x 12.7 mm (1/2”) strips.
  • Each strip is marked with its own thickness.
REF. NO.
THICKNESS IN
MM
REF. NO.
THICKNESS IN MM
REF. NO.
THICKNESS IN INCH
HTC-14019 A
0.03
HTC-14020 A
0.20
HTC-14021 A
1 THOU
HTC-14019 B
0.04
HTC-14020 B
0.25
HTC-14021 B
1.5 THOU
HTC-14019 C
0.05
HTC-14020 C
0.30
HTC-14021 C
2 THOU
HTC-14019 D
0.06
HTC-14020 D
0.35
HTC-14021 D
2.5 THOU
HTC-14019 E
0.07
HTC-14020 E
0.40
HTC-14021 E
3 THOU
HTC-14019 F
0.08
HTC-14020 F
0.45
HTC-14021 F
4 THOU
HTC-14019 G
0.09
HTC-14020 G
0.50
HTC-14021 G
5 THOU
HTC-14019 H
0.10
HTC-14020 H
0.55
HTC-14021 H
6 THOU
HTC-14019 J
0.15
HTC-14020 J
0.60
HTC-14021 J
7 THOU

REF. NO.
THICKNESS IN INCH
REF. NO.
THICKNESS IN INCH
HTC-14022 A
8 THOU
HTC-14023 A
17 THOU
HTC-14022 B
9 THOU
HTC-14023 B
18 THOU
HTC-14022 C
10 THOU
HTC-14023 C
19 THOU
HTC-14022 D
11 THOU
HTC-14023 D
20 THOU
HTC-14022 E
12 THOU
HTC-14023 E
21 THOU
HTC-14022 F
13 THOU
HTC-14023 F
22 THOU
HTC-14022 G
14 THOU
HTC-14023 G
23 THOU
HTC-14022 H
15 THOU
HTC-14023 H
24 THOU
HTC-14022 J
16 THOU
HTC-14023 J
25 THOU

MICRO METER 0 – 25 MM H TC - 14012
For general work, very useful for hobbyist (Also available : 25 to 50, 50 to 75, 75 to 100 mm)
(Inches sizes also available.)
