ENGINEERING INSPECTION EQUIPMENT

ENGINEERING INSPECTION EQUIPMENT
ENGINEERING INSPECTION EQUIPMENT
Product Code : AK-20
Brand Name : HTC TOOLS
Product Description

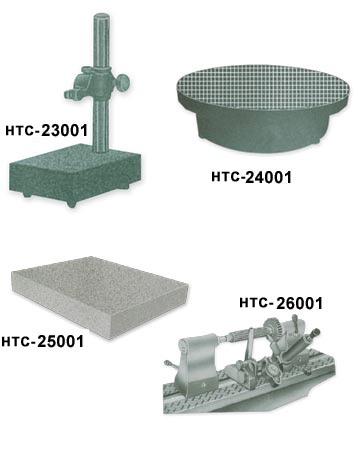

Our range of engineering inspection equipment is fabricated using finest quality steel. These inspection equipment are known for delivering superior durability, reliability and performance in the defined operations. Our range of equipment is used in general inspection works and metrology laboratories. These can also be customized as per the application specific requirements of our clients. Types of precision inspection equipment offered by us include :

1. Cast Iron Surface Plate



  • Made generally as per IS: 2285-2003 standards
  • Made from good quality close grained with high density alloyed cast iron castings conforming to Grade FG-220 of IS: 210
  • Stress relieved hand scraped surface



2. Comparator Stands

  • Made out of good quality of castings
  • Consists very stable base and an upright column with a dial mounting bracket with & without fine adjustments
  • These are made out of selected black granite with a very rigid fixing of steel pillar for the dial mounting bracket with & without fine adjustment



3. Lapping Plate

  • Made from good quality close grained high
  • Density alloyed cast Iron castings conforming to Grade FG 220 of IS: 210
  • Stress relieved hand scraped surface

4. Granite Surface Plate

  • Made out of selected black granite having uniform texture & colour
  • Very dense and hard wearing
  • Non-magnetic, non-glaring, economical, lesser wear, no oiling and no rust

5. PCD Gear Testing Attachment

  • Made out of good quality of castings and is designed as such to give fast & accurate readings of PCD of a Gear
  • The main shaft moves on taper roller bearings resulting smooth, accurate, less wear & fast working
  • The measuring balls can be changed for different modules of gears

6. Bench Centre

  • Made generally as per IS: 5980-1978 standards
  • Made from good quality of castings with high density alloyed cast
  • Iron castings conforming to Grade FG-220 of IS: 210

7. Cast Iron Camel Back St-Edge



  • Made generally as per IS: 5268-1991
  • Made from good quality close grained with high density alloyed cast
  • Iron Castings conforming to grade FG-220 of IS: 210

8. Cast Iron I-Section St. Edge

  • Made generally as per IS: 5268-1991
  • Made from good quality closed grained with high density alloyed cast
  • Iron castings conforming to grade FG 220 of IS: 210

9. Master Cylinder (Cylindrical Squares)

  • Made generally as per IS-6952-1990
  • Made out of good quality of alloyed steel
  • Fully hardened ground and lapped with lifting handle
